KMFS SENSEI Freehand Sharpening System
The shipping costs as well as the delivery time of available products will be communicated to you at checkout depending on your delivery location (country). See also the information on our "Shipping costs and delivery" page.
If "sold out" products are listed in the category "Announced", they will be available again in our shop within 3 to 6 weeks.
You can enquire about the availability of all other products marked "sold out" with us. Please feel free to contact us via the contact form or by phone.

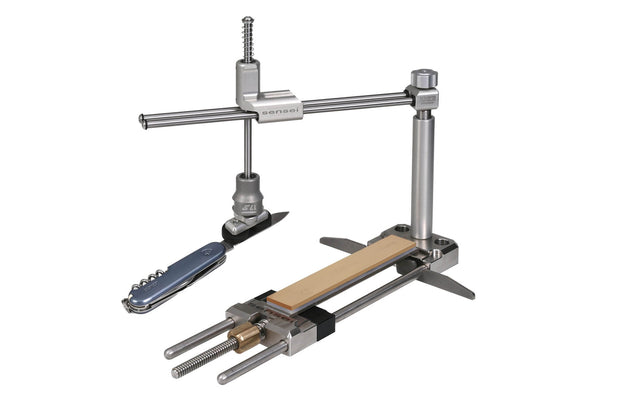

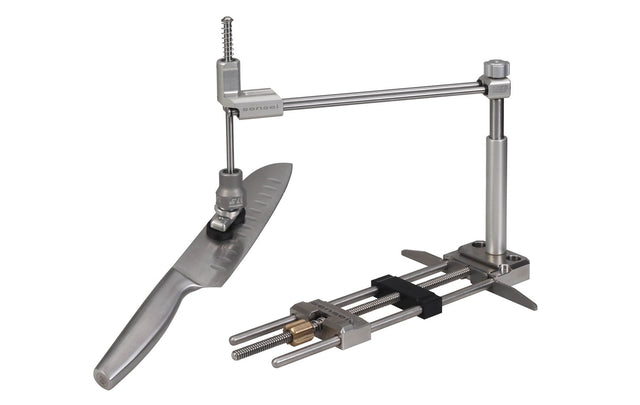

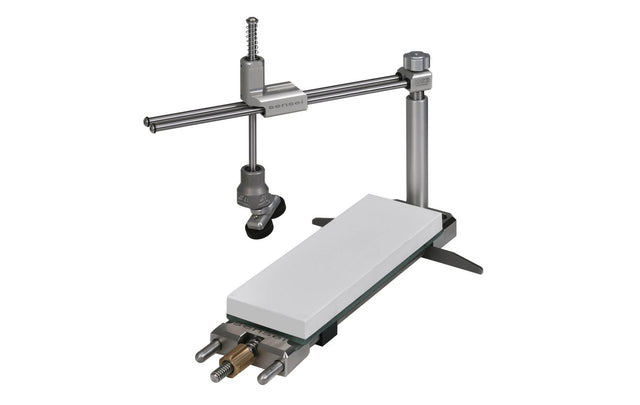

The KMFS SENSEI sharpening system is a completely new type of set.
The KMFS SENSEI allows you to maintain a precise sharpening angle when using any type of whetstone, while working completely hands-free, thereby achieving perfect results with maximum sharpening performance.
The patented grinding system was developed and manufactured entirely in the Czech Republic.
This grinding system utilizes our patented reverse kinematics, ensuring a consistent angle across the entire edge of the sharpened blade.
The set is equipped with a stainless steel hover spring, which is adjusted via the adjustment wheel on the rod to enable optimal sharpening on stones of varying thicknesses or with different blade heights.
The set allows you to choose the position of the kinematics with the rod in the center or on the left/right to ensure optimal movement of the kinematics for various sharpening styles.
The sharpening system in the basic set includes a head with sharpening angles of 15°, 17.5°, 20°, and 22.5°, which are maintained with absolute precision across the entire blade and during every sharpening operation. Additional accessories in the set also allow for sharpening at other angles. Note: This refers to the angle between the clamping magnets and the sharpening stone.
Thanks to the strong dual magnetic mounting, the blade can be clamped in place very quickly and securely. The magnets are encased in a protective rubber sleeve that improves grip and protects the blade’s surface.
A stand made entirely of stainless steel, which not only serves as a counterweight but also effectively dampens vibrations, ensures solid and stable sharpening.
The set is fully equipped with ball bearings that ensure absolutely smooth operation without play. There are 4 fully enclosed bearings for rotation around two angular axes and 3 double four-row linear bearings for linear movements.
The set features a stainless steel whetstone holder that can accommodate all KMFS stones and most stones from other manufacturers. Since there are no issues with the transition of the abrasive, the set does not need to be adjusted in any way for different abrasive thicknesses; the kinematics always ensure the correct angle. The set also allows for the use of any diamond or water-cooled grinding stones up to a length of 225 mm.
Scope of delivery:

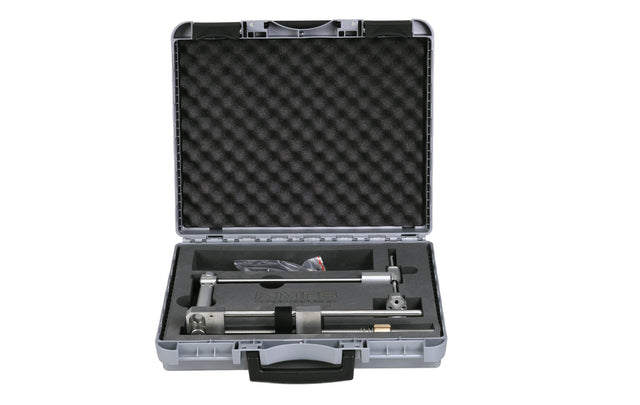

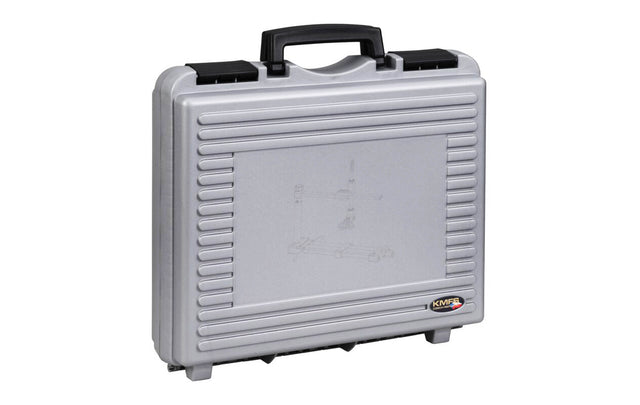

- Plastic case with foam insert
- KMFS SENSEI sharpening system
- Stainless steel stabilizer wings
- The KMFS SENSEI is shipped without whetstones or the knives shown in the picture.
- Allen wrench for the kinematic rail mounting screw
- FP-10 Lubricant Elite oil for system maintenance
Materials used:
- Main material: Duralumin ENAW 7075 T651, stainless steel
- Surface treatment: anodic oxidation
- Linear rods: X90CrMoV18, surface-hardened stainless steel
- Bearings: hardened steel
- Stone clamping spring: stainless steel
- Stone clamping nut: bronze
- Kinematics pin: hardened steel
- Rod screw: stainless steel
The key advantages of KMFS SENSEI:
- Fully machined from solid stock using CNC machining centers for maximum rigidity and precision.
- Precise adherence to the set angle values.
- Identical sharpening of both sides of the blade through simple re-clamping.
- Thanks to the use of inverse kinematics, it is possible to use different
- grinding stone thicknesses at a consistent angle along the entire blade length.
- Minimal setup time for sharpening.
